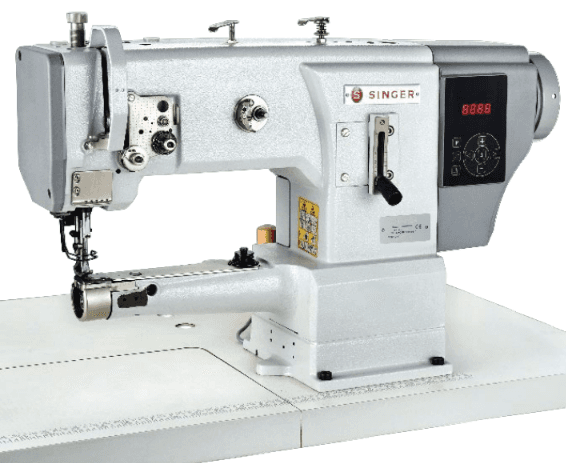

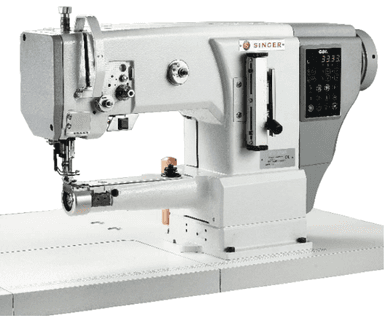

Singer® 90D-30EA / 90D-30GA Industrial Cylinder Arm Sewing Machine for Leather & Bags

Cylinder-arm sewing machine for tubular articles, leather garments, bags, shoe binding, suitcases, and upholstery piping.

Specifications:
• Models 90D-30GA (220V) / 90D-30GB (110V): 2,800 rpm | 6.0 mm stitch length | Auto Backtack, Auto Thread Trimming & Auto Presser Foot Lift: Yes
• Models 90D-30EA (220V) / 90D-30EB (110V): 2,800 rpm | 6.0 mm stitch length | Manual controls
• Clearance Under Presser Foot: 7.0 mm | Cylinder Bed Diameter: 51 mm (~165 mm circumference)
• Needle System: 134-35 | Application: Medium to Heavy Materials

• Remove leather shavings, adhesive residue, and heavy thread dust from the cylinder-arm hook daily.
• Lubricate the cylinder-arm hook race and walking-foot joints before each shift.
• Use 134-35 needles suited for leather and heavy textiles.
